What Size Charge Controller Do You Need for a 100W Solar Panel?
Affiliate Disclosure: This post contains affiliate links. If you buy through our links, we may earn a commission at no extra cost to you.
Quick answer: a single 100W panel on a 12V battery needs a 10-amp charge controller. One line of math gets you there : and this guide covers the math, the PWM-vs-MPPT decision, and which controllers we actually recommend.
The Simple Math
Charge controller sizing = panel watts ÷ system voltage ÷ 0.8 (safety margin):
100W ÷ 12V ÷ 0.8 ≈ 10.4A → buy a 10A or larger controller
That 20% safety margin isn’t optional : cold, bright days can push panels past their rated output, and an undersized controller is a fire-risk failure point, not a spec-sheet footnote.
| System Voltage | Minimum Controller | Recommended |
|---|---|---|
| 12V | 10A | 15A |
| 24V | 5A | 10A |
The recommendation column buys you headroom to add a second identical panel later without replacing hardware.
PWM vs MPPT: Which Type?
PWM (Pulse Width Modulation) : the budget choice
PWM controllers act like a simple switch between panel and battery. They’re cheap ($15-30), reliable, and totally fine for small 100W systems where the panel voltage roughly matches battery voltage.
MPPT (Maximum Power Point Tracking) : the efficiency choice
MPPT controllers continuously hunt for the panel’s optimal operating point and convert excess voltage into extra charging current. Real-world gain over PWM: 15-30% more power harvested, dramatically more in cold weather or partial shade.
Rule of thumb: under ~200W of panel with a tight budget, PWM is honest value. Above that : or in any climate with real winters : MPPT pays for itself within a couple of seasons.
Our Picks

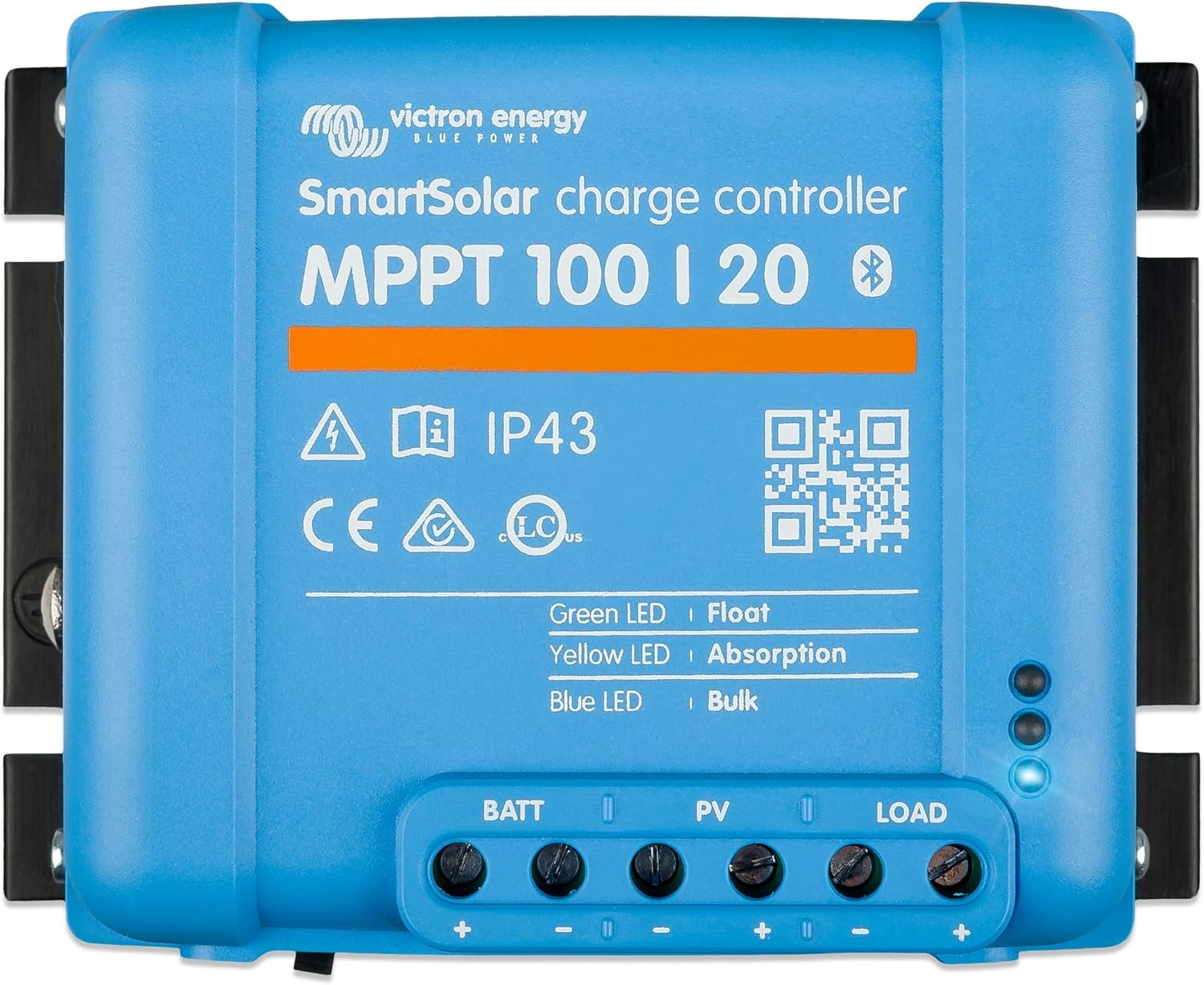

🏆 Victron SmartSolar MPPT 100/20 : Best Overall
Overkill for one panel? Absolutely. But it’s the last controller you’ll buy through several system expansions: handles up to 20A output and 100V input (enough for three 100W panels in series), Bluetooth monitoring via the excellent VictronConnect app, and legendary reliability. If your 100W panel today becomes a 600W array next summer, this box doesn’t blink.

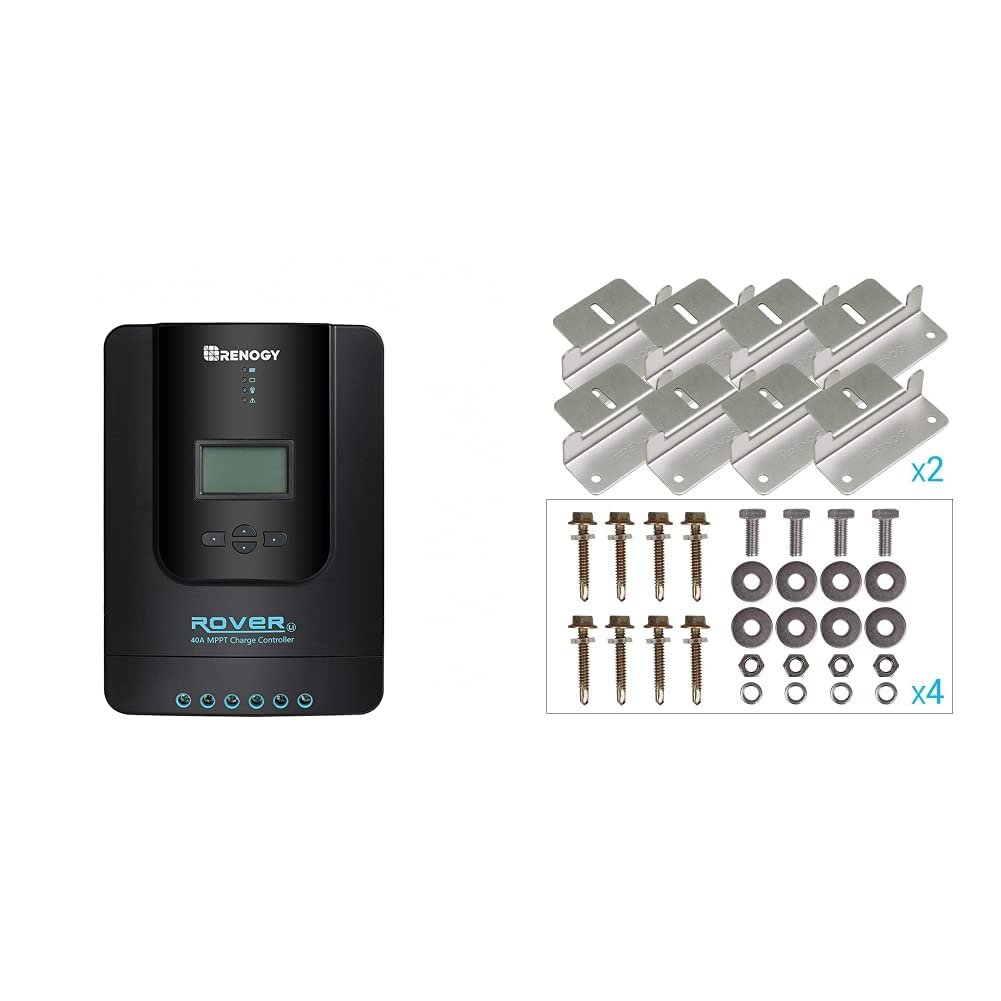

💰 Renogy Rover 40A MPPT : Best for Growing Systems
Handles up to 520W on 12V (1,040W on 24V) with a clear LCD display, RS485 monitoring port, and support for every battery chemistry including lithium. The mid-range workhorse for cabins planning serious expansion. Remember its manual’s warning: add a fuse between controller and battery.

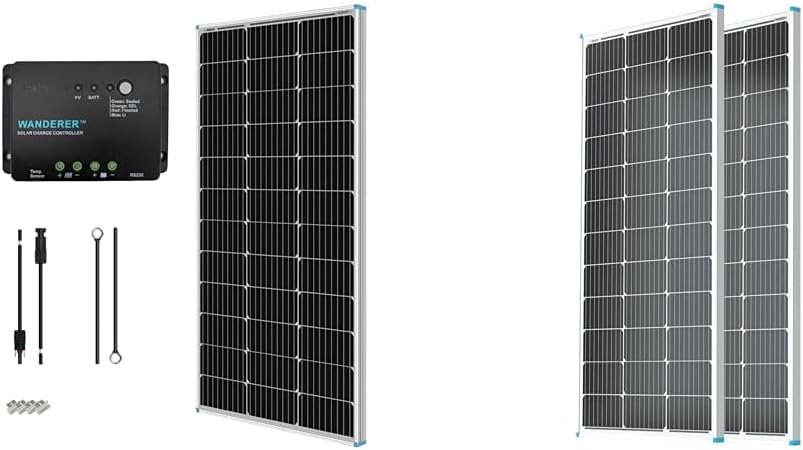

🧰 Renogy 100W Starter Kit (includes 30A PWM) : Simplest Start
If you haven’t bought anything yet: this kit bundles a 100W panel, 30A PWM Wanderer controller, cabling, and mounts. The controller is already correctly sized for the included panel : zero math required. Expandable to 400W before outgrowing it.
Installation Checklist
- Fuse between battery and controller (sized per controller manual) : non-negotiable
- Connect battery first, then panel; disconnect in reverse order
- Match wire gauge to current : 10AWG covers most 100W runs
- Mount controller close to the battery, in ventilated shade
- Set the battery type/chemistry parameter before connecting loads
FAQ
Can I use a bigger charge controller than needed?
Yes : oversizing is harmless and future-proof. Undersizing is dangerous.
What happens if my controller is too small?
At best it throttles output; at worst it overheats and fails, potentially damaging the battery or wiring.
Do I need a controller with a power station?
No : portable power stations have built-in charge management. Controllers are only for direct-to-battery systems.
Is a 20A controller OK for a 100W panel?
Perfectly fine : it’ll run cool and leave room for growth.
